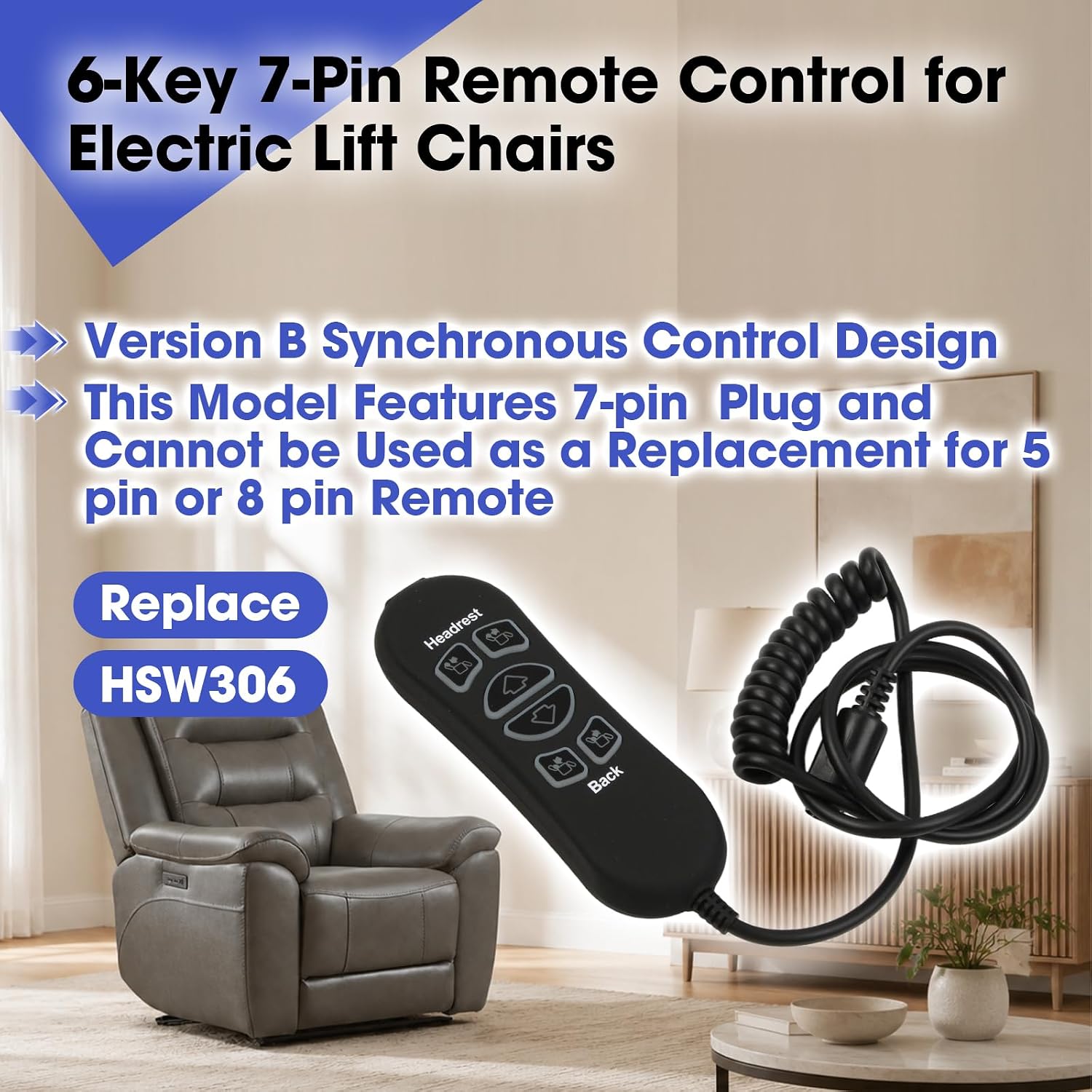

6 Button 7 Pin Lift Chair Remote Controller Replace HSW306, Backrest and Footrest are Controlled Separately (Version B)

Version B Control Logic - Separate Adjustment of the Back and Foot Pedal Synchronous Adjustment Function When the backrest adjustment button is pressed, the backrest and foot pedal will be linked simultaneously Realize one click smooth transition from sitting to lying position Improve user convenience Reduce operational steps and improve the convenience of daily use 6-key Layout, Clear and Complete Functions 6 independent function buttons, each controlling: Headrest Tilt Footrest Up Footrest Down Backrest Up & Down Intuitive button layout and clear functional identification Easy to get started without complex learning, especially suitable for elderly users Ergonomic Design, Comfortable Grip The remote control shell adopts a rounded and smooth ergonomic shape Comfortable grip and snug fit on the palm, no fatigue after prolonged use The button positions have been optimized, allowing the thumb to naturally touch all buttons, making operation easy and effortless Durable and Reliable, Quality Assurance The shell is made of high-strength engineering plastic, which has good impact resistance and wear resistance The buttons are made of high-quality silicone material, which feels soft and comfortable to the touch Clear press feedback, able to withstand tens of thousands of press tests The internal circuit board is treated with a waterproof and moisture-proof coating Improve reliability in humid environments and extend service life Plug and Play, Easy to Install Using a standard 7-pin plug Simply insert the corresponding interface to use, without the need for complex settings or pairing The included cable is of moderate length Place the remote control on the side of the chair or hold it for use

• Design of Independent Control Mode: This Version B 6-key 7-pin remote control is specially developed for electric lifting chairs, using version B control logic, which can simultaneously control the coordinated action of the backrest and footrest.The control commands for the backrest and footrest are separated and do not interfere with each other, achieving precise single action control experience
• Accurate Replacement: Strictly follow the electrical parameters and interface definitions replace HSW306 model, and the 7-pin connector layout is consistent with the original remote control. It can directly replace damaged or aged original remote controllers without the need to modify wiring or controller settings, achieving worry free upgrades
• 6-key Layout for Multi-mode Control: The panel is equipped with 6 function keys, providing diverse control options. Headrest tilt, footrest up, footrest down, backrest up &down, meet personalized posture requirements in different usage scenarios
• Stable Signal Transmission: Using a 7-pin dedicated connector, each pin is responsible for independent signal transmission function, ensuring accurate transmission of key commands to the motor controller. The plug and socket are tightly matched, effectively preventing signal interruption or false triggering caused by vibration during use
• Ergonomic Design for Comfortable Grip: The remote control shell adopts a streamlined ergonomic design, providing a comfortable and natural grip. The button layout conforms to the natural extension trajectory of fingers, and the raised button surface has tactile feedback, making it easy to operate blindly even when not looking directly at it, improving the convenience of daily use
